제품 상세 정보:
결제 및 배송 조건:
|
| 적용: | 컨베이어 시스템 | 패키지: | 합판 박스 |
|---|---|---|---|
| 표본: | 지원 | 최소 너비: | 152 밀리미터 |
| 키워드: | 플레이트 링크 컨베이어 벨트 | 스프로킷 재질: | 탄소강, 201 304 316 스테인레스 스틸 |
| 플레이트 두께 사격: | 2-3mm | 구멍 모양: | 정사각형 홀 |
| 사용 시간: | 3-5년 | 선행 시간: | 당신의 대금을 받은지 10 일 뒤에 |
| 점검: | 비디오 검열 | pin 직경: | 4.9 밀리미터 |
| 주식: | 주식을 가지고 있으세요 | 온도 저항성: | 최대 1200°C |
| 표면 처리: | 아연 도금 또는 연마 | ||
| 강조하다: | 1.2m Conveyor Belt,1.8m Conveyor Belt,Food Grade Conveyor Belt |
||

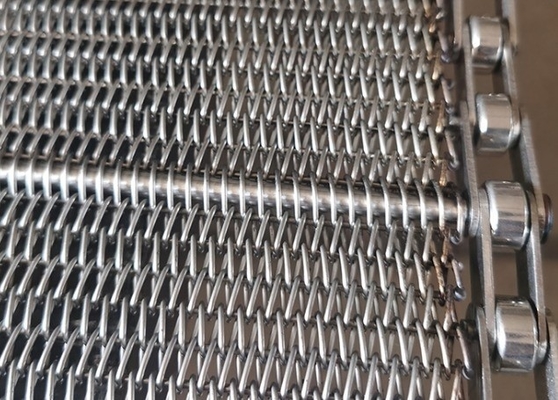

Food Grade 304 1.2m wide 1.5m wide 1.8m wide Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt
Stainless steel chain conveyor is a robust material handling system designed to transport products, components, or materials along a defined path. It consists of interlinked stainless steel chains (often roller chains, flat-top chains, or modular plastic belts on stainless frames) that form a continuous loop driven by sprockets. The chains run on stainless steel tracks or guides, supported by a rigid stainless steel frame. Key features include high strength, corrosion resistance, and suitability for demanding environments.
| Material | SS304, SS316, SS316L, SS430, Galvanized wire, customized |
| Spiral wire diameter | 0.5mm - 3mm, customized |
| Rod wire diameter | 0.5mm - 4mm, customized |
| Spiral pitch | 5-50mm, customized |
| Rod pitch | 5-50mm, customized |
| Wide | Mesh belt wide (without chain)/ Conveyor belt wide ( with chain ) |
| Length | 1m - 10m, customized |
Advantages:
1. Superior Corrosion Resistance: Resists rust, chemicals, water, steam, and cleaning agents, making it ideal for wet, humid, or corrosive environments (food, chemical, marine).
2. High Hygiene & Cleanability: Smooth, non-porous surfaces prevent bacterial growth and allow for easy. Essential for food, beverage, pharmaceutical, and medical applications.
3. High Temperature Resistance: Maintains strength and integrity under significant heat (e.g., ovens, washers, sterilizers, foundries).
4. Strength & Durability: Withstands heavy loads, impacts, and abrasive materials better than many alternatives. Long service life.
5. Sanitary Design: Minimizes areas where debris can accumulate, meeting strict sanitary regulations (FDA, USDA, 3-A).
6. Aesthetic Appeal: Maintains a clean, professional appearance over time.
7. Resistance to Oxidation & Staining: Performs well outdoors or in atmospheres prone to oxidation.
How to use it:
1. Installation: Securely mount the rigid frame, ensuring proper alignment and leveling. Install drive unit (motor, gearbox) and tail/take-up section.
2. Chain Tensioning:Correctly tension the chain using the take-up mechanism – not too tight (excessive wear) or too loose (slippage, derailment).
3. Loading:Products are typically loaded onto the chain surface manually, via feeders, or from preceding equipment. Ensure load is within capacity and evenly distributed.
4. Operation: Start the drive system. Chains move continuously or index (start/stop) along the track, carrying the product. Speed is controlled via the drive.
5. Unloading: Products are offloaded at the end (or intermediate points via pushers/diversions) manually, by gravity, or onto another conveyor.
Cleaning & Maintenance:
Regular Cleaning: Use water, steam, or approved sanitizers. High-pressure wash is common. Ensure proper drainage.
Lubrication: Use food-grade or compatible lubricants sparingly if required (some designs use self-lubricating chains or run dry). Avoid contamination.
Inspection: Regularly check for chain wear (stretch), damaged links, worn sprockets, proper tension, bearing condition, and frame integrity.
Component Replacement: Replace worn chains, sprockets, guides, and bearings promptly to prevent failures.
